In this guide, we'll walk through the configuration required to use Firezone to route traffic through a public IP address, sometimes known as a NAT Gateway configuration.

Use this when you need your team's traffic to appear to come from a single, static IP address to use services that require source traffic to come from specified IP allowlists.

After completing this guide, your team's traffic will be routed to a Firezone Gateway and then out to the internet using its public IP address.

See our our Terraform examples for a high availability example of this guide using Terraform on Google Cloud Platform.

Prerequisites

  • A Site reserved for this use case. Create a Site if you haven't already.
  • One or more Gateways deployed within the Site. Deploy a Gateway if you haven't done so yet.

This guide assumes the Gateway has a public IP attached. This is required to function as a NAT gateway.

Step 1: Create Resource(s) matching the traffic you want to route

  1. In your admin portal, go to Sites -> <site> and click the Add Resource button.
  2. Add Resource(s) for each service that requires an IP allowlist. For example, if you need traffic to *.gitlab.company.com to appear to come from your Gateway's public IP address, you would enter *.gitlab.company.com as the Resource address.
  3. Optionally, add a Resource with address ifconfig.net to the Site as well. This will be used later to verify that your traffic is being routed through the Gateway's public IP.

Step 2: Create Policies

  1. In the Policies tab, click the Add Policy button.
  2. Create a Policy for each of the Resources you created in Step (1). Be sure to select the appropriate Group and Resource for each Policy.

Step 3: Done!

That's it!

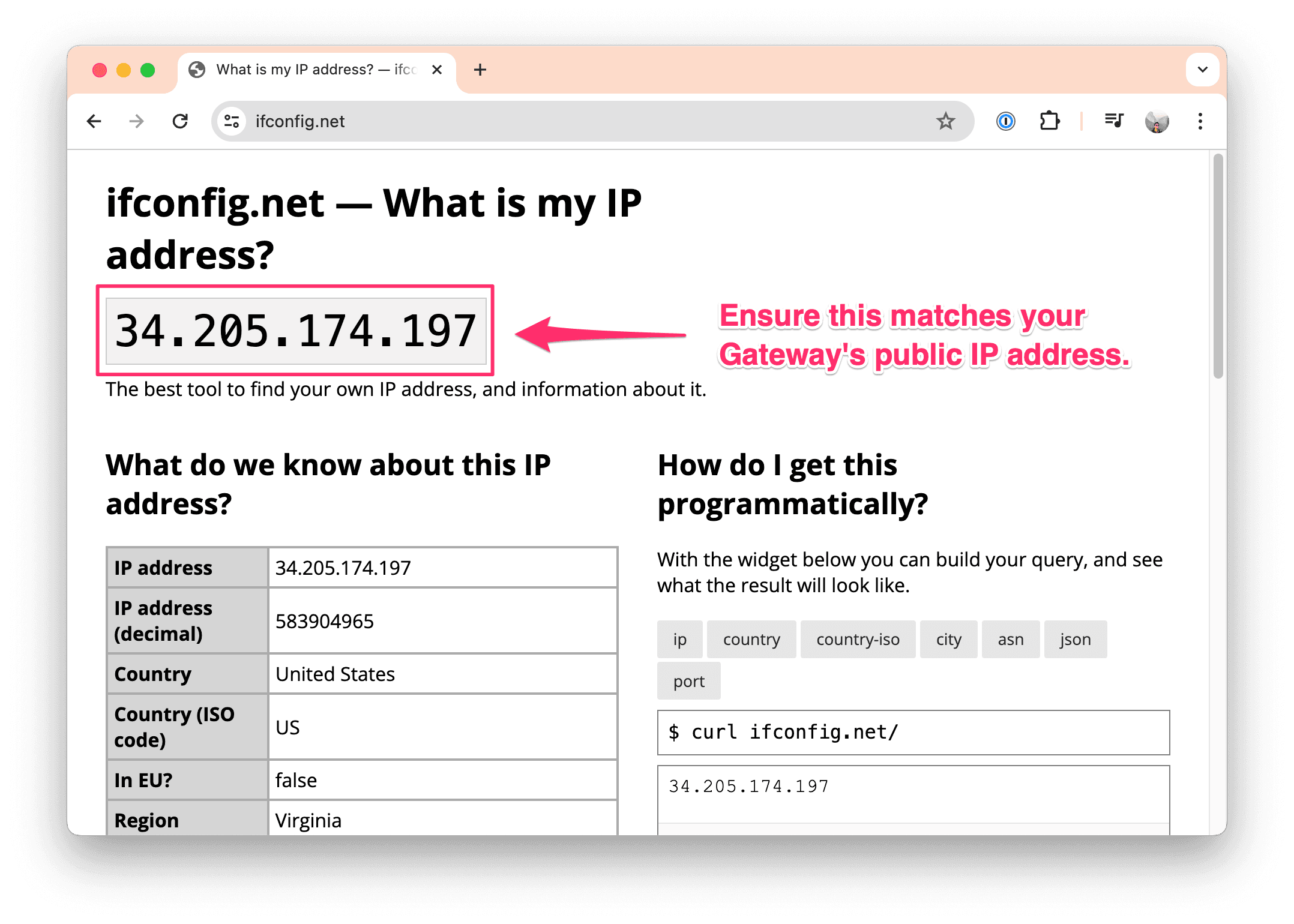

If you added the ifconfig.net Resource above, you can verify that your traffic is being routed through the Gateway by visiting https://ifconfig.net in your browser and ensuring the IP displayed matches the public IP address of your Gateway.

Verify traffic is routed through the Gateway
